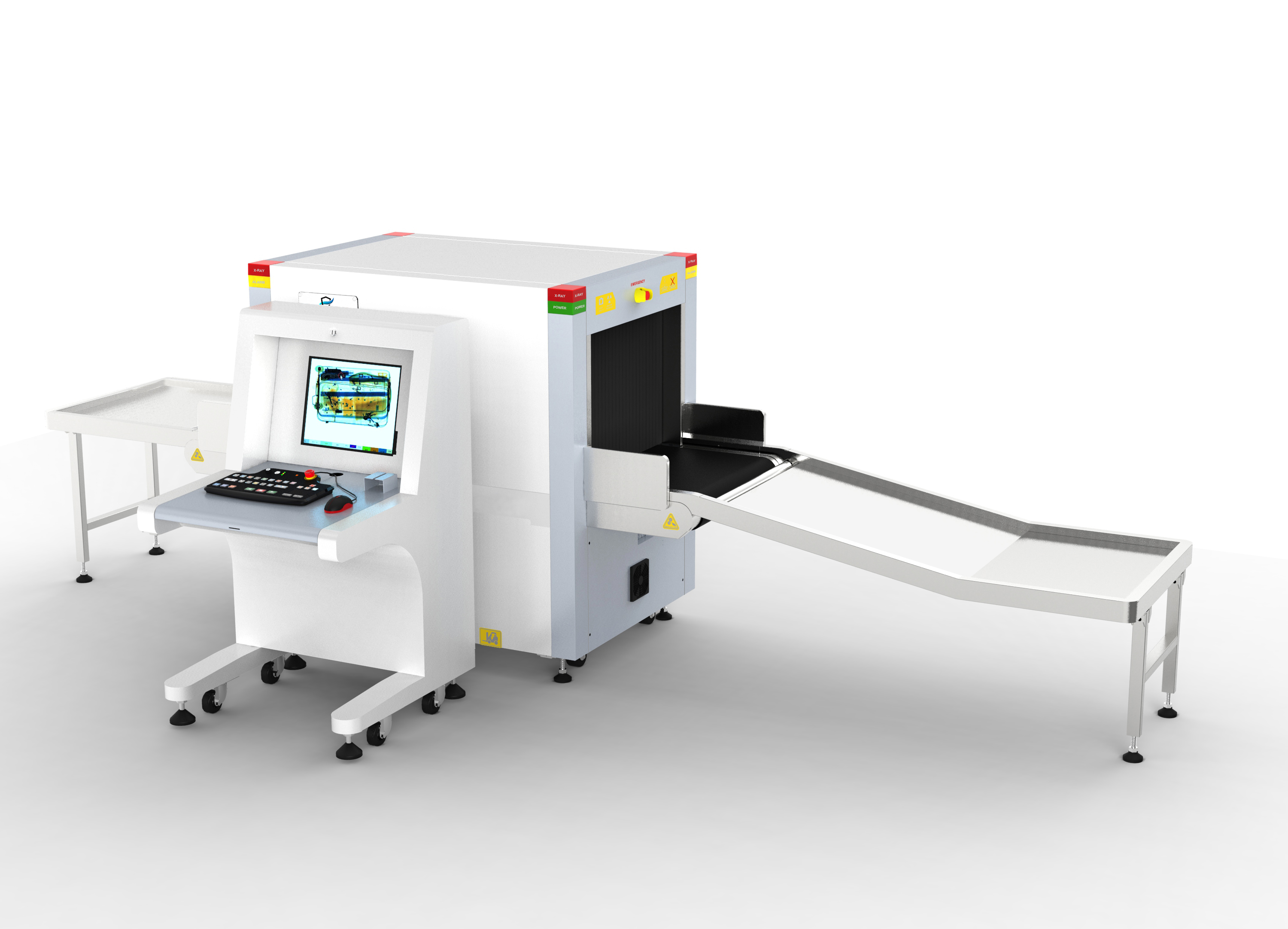

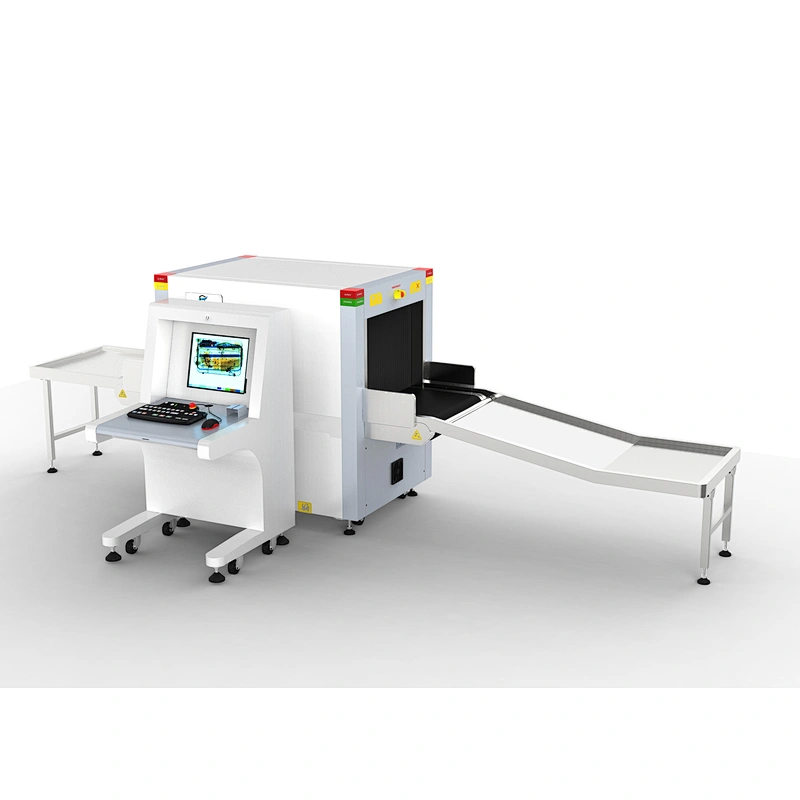

X-ray Baggage Scanner ZA6550B

Model NO.: X-ray Baggage Scanner ZA6550B

Quantity:

Product Description

Model: ZA6550B

Character:
Multilingual operation
Automaticbuilt in testand self diagnosis
SecureaccessKey
Continuous working 10000 hours above
Threatalert and material classification
International standard configuration:Japan Hammatsu detection and UK Senstech board
Network‐Ready
Energy saving design
Onekeyturnoff
Drugs and explosives inspection
Indicationof the dateand time

Important Sizes :
Product Size: 4116.93* 904 * 1331mm (L × W × H)
Tunnel Size: 660* 502mm (width × height

General Specifications:

Unit weight : 506kgs
Unit size: 4116.93(L)*904(W)*1331(H) mm
Tunnel size(mm):660(L)*502(W)
Conveyor Speed(m/s): 0.2
Conveyor height(mm):670
Conveyor Max Load(kgs):150
Penetration:Typical 38mm steel, guarantee 34mm steel
Wire Resolution:Typical AWG40, guarantee AWG38
X-Ray dosage each inspection: Typical 2.5 μGy/h, guarantee 3.5 μGy/h
Boundary Leakage: Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Power consumption: Max.0.8KVA
S/N ratio: <60dB
Film Safety: Guarantee ASA/ISO1600 Film

Configuration
X-Ray generator:160KV, oil cooling, from bottom to top
Imaging System:Japan Hammatsu detector + UK Sens-tech PCBA
Computer:CPU: Intel Celeron 2.60-2.70GHz, hard drive 500G, Storage 2G Dell
Monitor: or Acer, 17"/19 LED sceen, resolution 1280*1024 pixels
Operation:Single screen console
tableOperation System：Windows XP

Software
Image Enhancement：1-64times enlargement continuity, Color/BW, negative,high/lowpenetration, organic /inorganic Stripping, general enhancement, and pseudo color,etc.
Image Recall：30 preceding images recallable,retrieval.
Image Archive：Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Other Functions：Time/date display, counters, user management, system-on/X-ray-on timers, power on self test,built-in diagnostic facilities, dual-direction scanning, system log, system standby andstimulant training, ADS etc.
Network ApplicationsMultiple remote applications available based on Ethernet LAN and windows platform, such asimage centralized storage and identify, recheck workstation, and network TIP,etc ( Optional).

Operating Environment

Operation temperature Humidity：5C‐40C/0%-90%(non-condensing)
Storage temperature/Humidity：-20C‐60C/10%-90%(non-condensing)
Operation Power：220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
