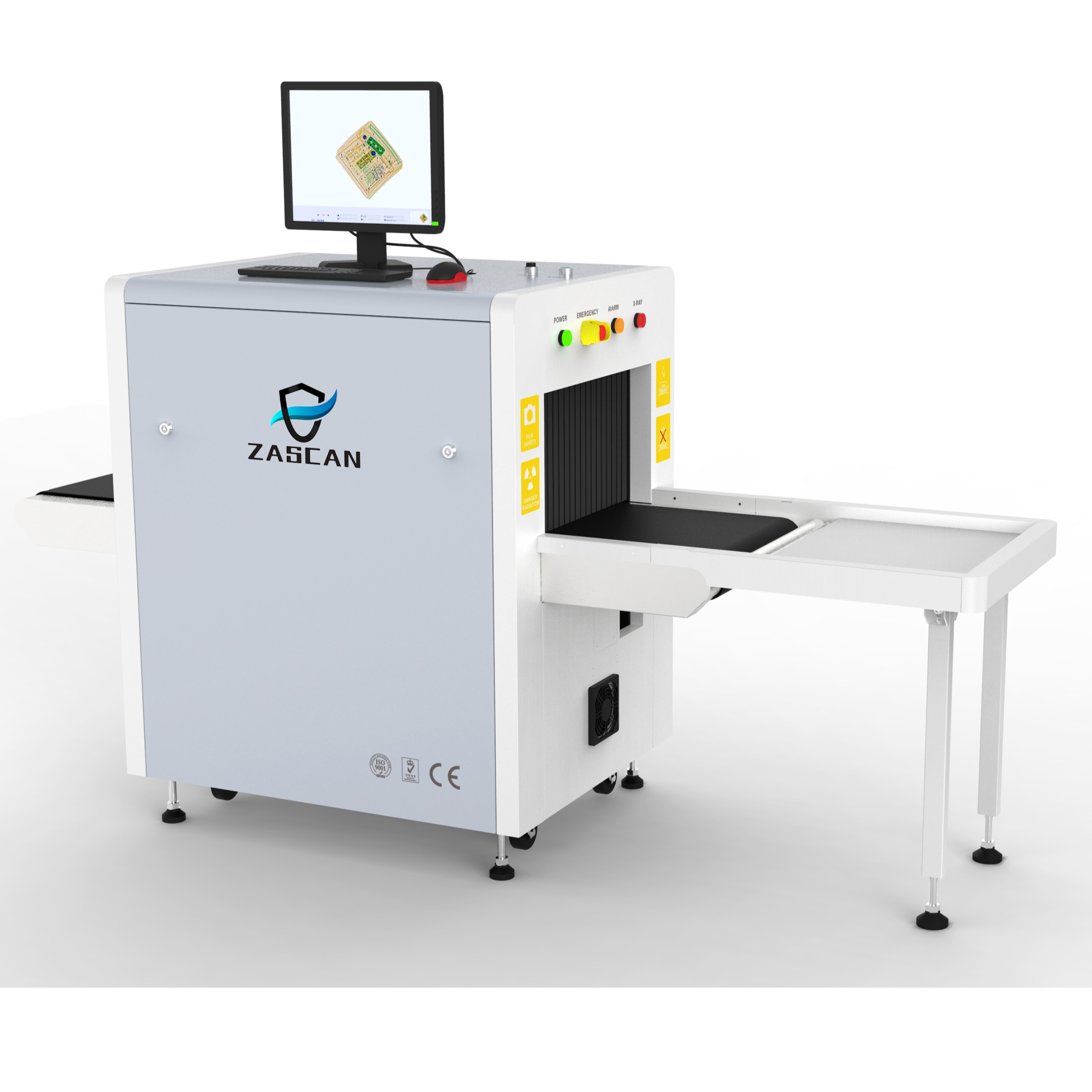

X-ray Baggage Scanner
Model: ZA-5030
*Linuxoperationsystem
*ARM cpu
*Digitalsignal and processor
*Continuous hard work for10000 hours
*Energy saving design
*High penetration
*Good quality images Product Details:
Unit weight: 290kgs
Unit size: 2178(L)*746(W)*1165(H) mm
Tunnel size(mm): 500(L)*300(W)
Conveyor Speed(m/s):0.2
Conveyor height(mm):668.5mm
Conveyor Max Load(kgs): 60kgs
Penetration:Typical 32mm steel, guarantee 30mm steel
Wire Resolution:Typical AWG38, guarantee AWG36
X-Ray dosage each inspection :Typical 3.0 μGy/h, guarantee 3.5 μGy/h
Power consumption:Max0.5KW
S/N ratio:<60dB
Film Safety:Guarantee ASA/ISO1600 Film
Configuration
X-Ray generator: 140KV oil cooling,from bottom to top
Computer: CPU: Cortex A9
Monitor :Dell or Acer, 17"LED sceen, resolution 1280*1024 pixels No
Operation System: LINUX
Software
Image Enhancement: Color/BW, negative,high/lowpenetration, organic /inorganic Stripping, general enhancement, and pseudo color,etc.
Image Recall: 30 images recallable,retrieval.
Image Archieve:Up to 500,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats.
Other functions:Fault diagnosis, system time setting, detection blind dots delete, x-ray source setting(analoge or digital), alarm setting, images setting, software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)
Network applications: Multiple remote applications available based on Ethernet LAN and windows platform, such asimage centralized storage and identify, recheck workstation, and network TIP,etc ( Optional).
Operating Environment
Operation temperature:5C‐40C/0%-90%(non-condensing)
Humidity Storage temperature:-40C‐70C
Humidity: 5%-95%(non-condensing)
Operation Power: 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
