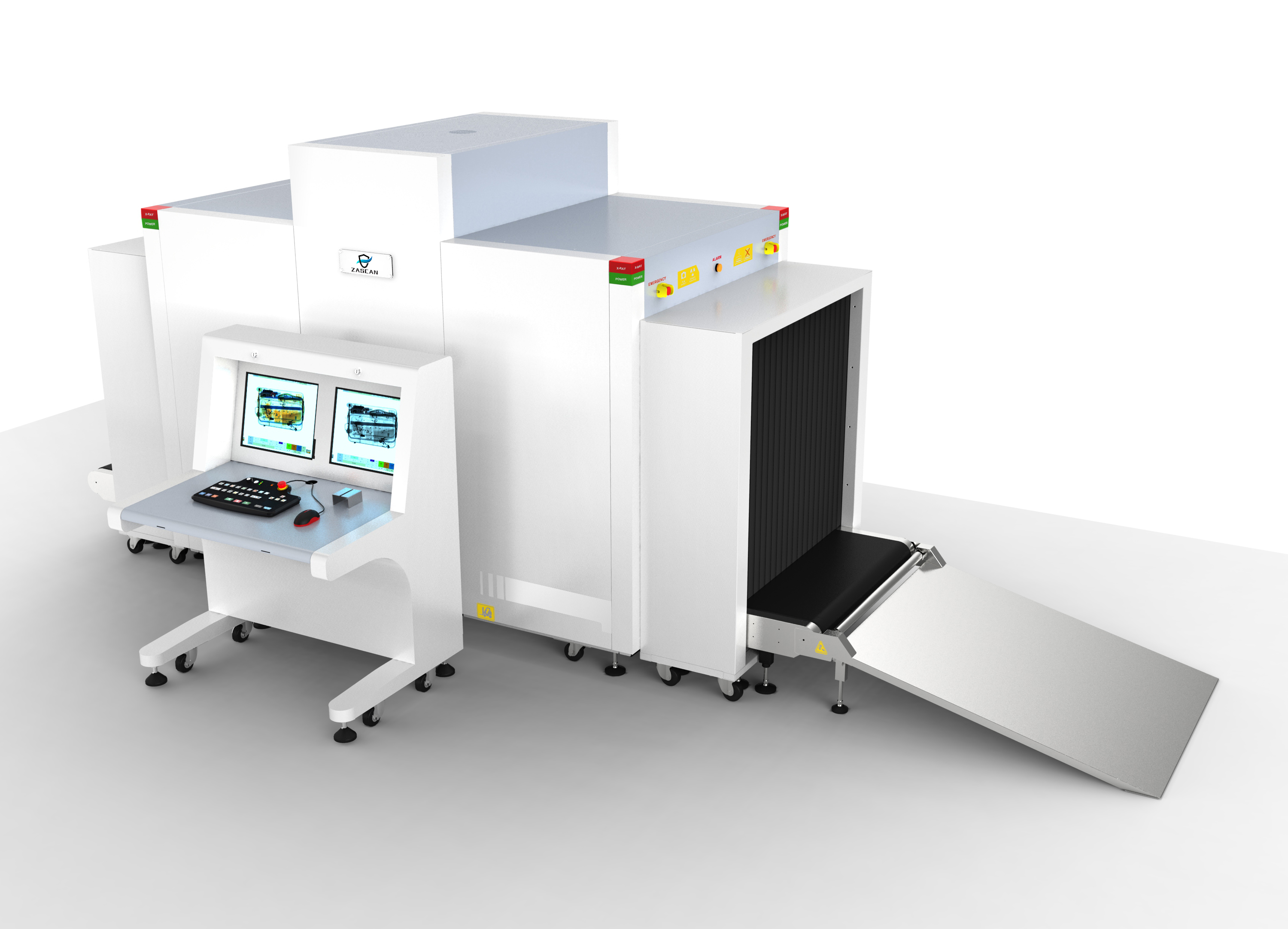

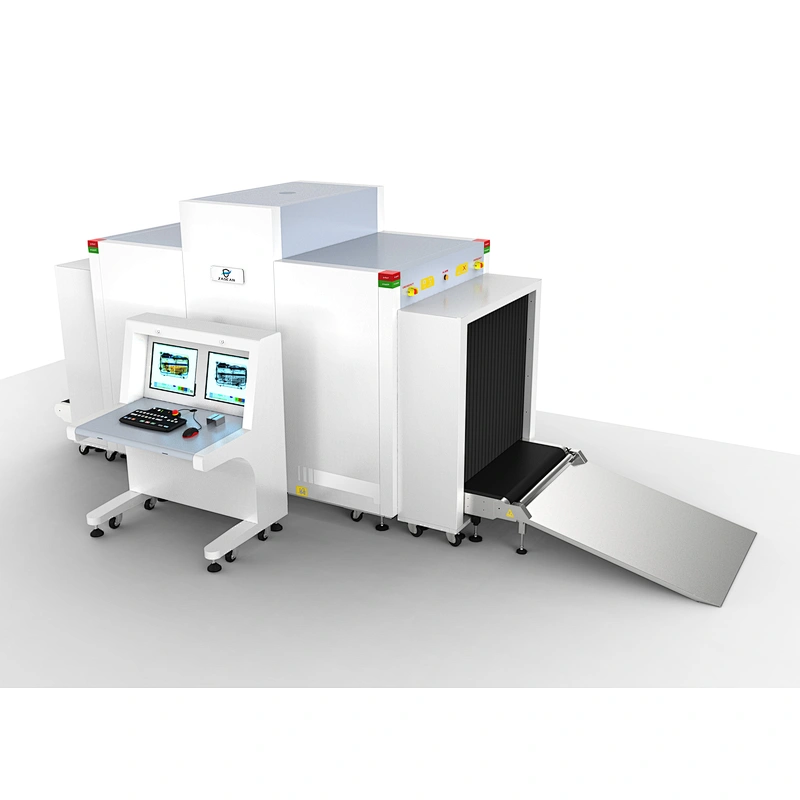

Model: ZA100100B
Character:
Multilingual operation
Automatic built in test and self diagnosis
Secure access Key
Continuous working 10000 hours above
Threat alert and material classification
International standard configuration:
Japan Hammatsu detection and UK Senstech board
Network‐Ready
Energy saving design
One key turn off
Drugs and explosives inspection
Indication of the date and time
Important Sizes:
Product Size: 4846.3* 1305 * 1922 mm (L × W × H)
Tunnel Size: 1008* 1009mm (width × height)
General Specifications
Unit weight:1080 kgs
Unit size:4864.3(L)*1305(W)*1922(H) mm
Tunnel size(mm):1008(L)*1009(W)
Conveyor Speed(m/s):0.2
Conveyor height(mm): 342
Conveyor Max Load(kgs):200
Penetration:Typical 34mm steel, guarantee 32mm steel
Wire Resolution:Typical AWG38, guarantee AWG36
X-Ray dosage each inspection:Typical 1.5 μGy/h, guarantee 2.0 μGy/h
Boundary Leakage:Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Power consumption:Max.1.0KVA
S/N ratio:<60dB
Film Safety:Guarantee ASA/ISO1600 Film
Configuration
X-Ray generator: 160KV, oil cooling, from top to bottom
Imaging System:Japan Hammatsu detector + UK Sens-tech PCBA
Computer :CPU: Intel Celeron 2.60-2.70GHz, hard drive 500G, Storage 2G Dell or Acer
Monitor : 17"LED sceen, resolution 1280*1024 pixels Double screen console
Operation table: Double screen console
Operation System:Windows XP
Software
Image Enhancement:1-64times enlargement continuity, Color/BW, negative,high/lowpenetration, organic /inorganic Stripping, general enhancement, and pseudo color,etc.
30 preceding images recallable,retrieval.
Image Recall Image Archive:Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Other Function:Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operating Environment
Operation temperature: 5C‐40C/0%-90%(non-condensing)
Humidity Storage temperature:-20C‐60C/10%-90%(non-condensing)
Humidity Operation Power:220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
