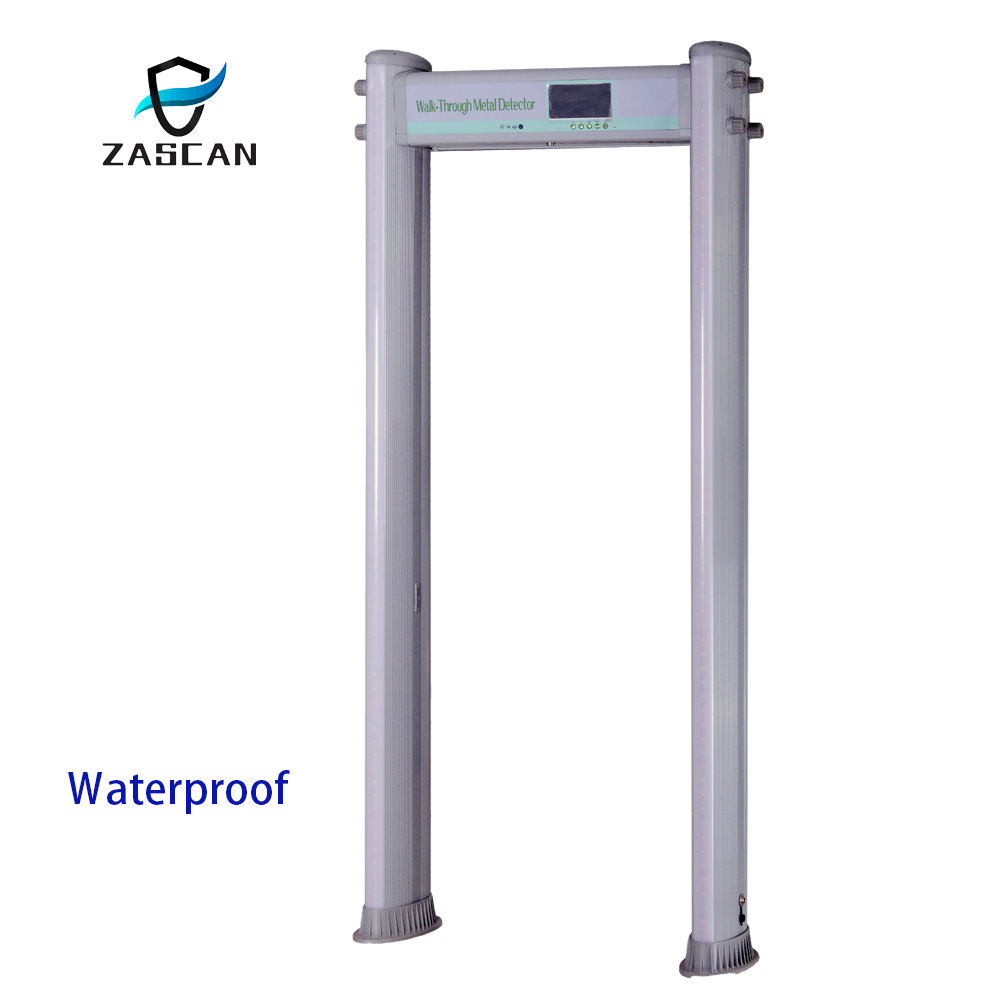

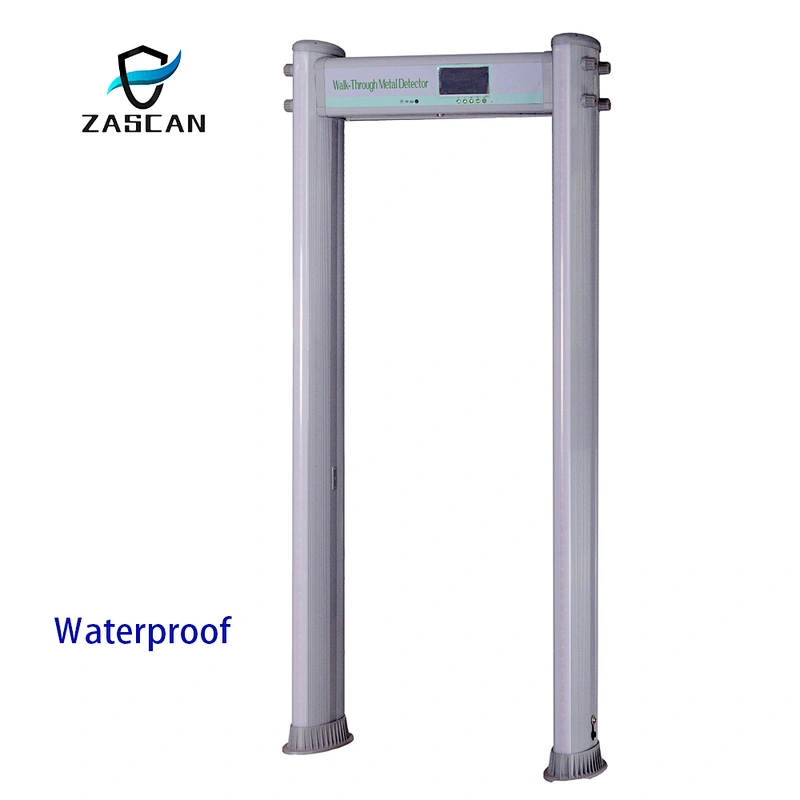

WALK THROUGH METAL DETECTOR(waterproof)
MODEL:ZA-3300R
This metal detector has high detection sensitivity for magnetic metal and non-magnetic, and has good recognition ability for personal items such as coins, keys, belt buckles, etc. Multi-layer overlapping transceiver coil design, using high-intensity indicator column can be accurately shows the horizontal position of the metal object, which is convenient for the staff to quickly identify and achieve the best detection effect.
Technical parameter:
Model Number：ZA3300R
Door External Size: 2230(H)X930(W)X300(D)mm
Door Internal Size: 2010(H) x 720(W) x300(D)mm
Packing type：Carton box
Net weight：55KG
Gross weight：60KG
Working voltage：AC90V~264V 47.5~60Hz
Power consumption：less than 15 W
Detection zones：6/11/22/33 zones；
Each zone sensitivity：0-300Level
Working frequency：up to 100 level frequency for adjusting
Relative Humidity：0 – 95 %
Working environment temperature：-20ºC~65ºC
Character and Function Description: *7 inches colour LCD monitor with Infrared remoter controller
*6/11/22/33zones；display on the panel both side with LED display on the door panel.
*Program Self-diagnostic when power on
*With different language version for client use easily
*Fly object detection function
* With 30 application inside
*With LED interference signal display on the monitor
*The distance between 2 doors can up to 50cm and several doors use together without interference
*It can detect up to 100 times per minute at the fastest, and automatically enters the power saving mode without detection within 5 minutes，When the people or object passes, it automatically enters the awake mode.
*Have 20 degrees volume and 16 kinds of the tone for adjusting.
*Automatically counting the passing times (display Enter and out exit separately) and alarm times.
*100,000 large capacity record information is convenient for inquiry
* Password protection only allows authorized person to operate and moresecure
*Dry Contact function for option
*Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Application：
Government office, Shopping mall, hotel, school, building, police office, courts, prisons, Border, airport, station, gymnasium, exhibition center, places of entertainment, large gatherings , factories such as hardware, electronics, jewelry, war industry, coinage and other factories or companies.
