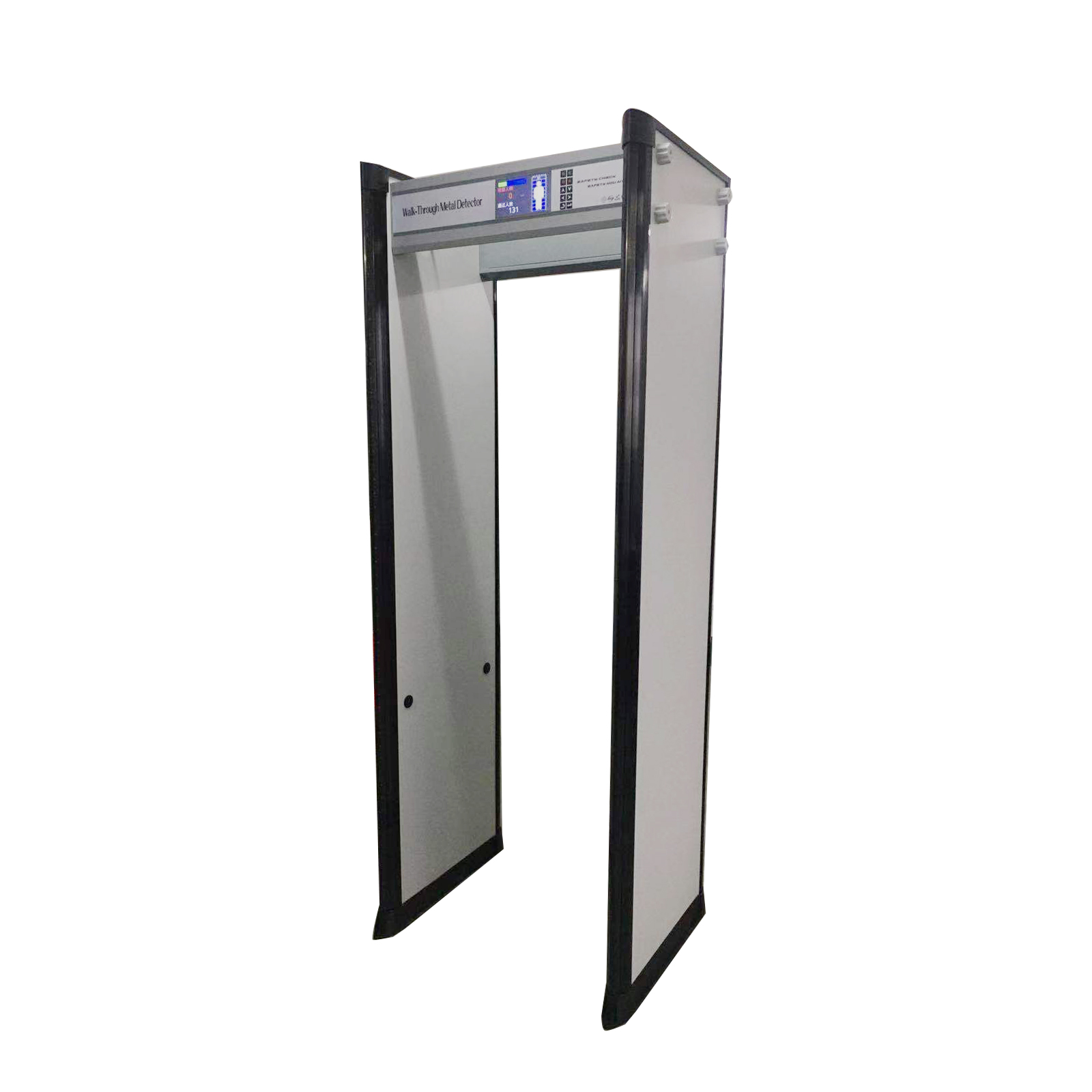

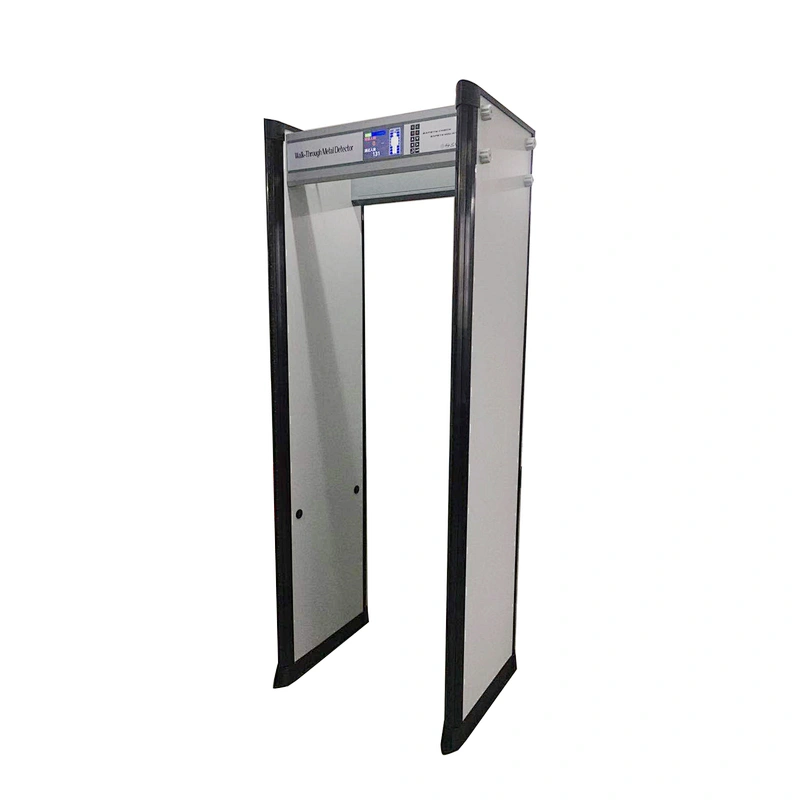

45 Detecting Zones Walkthrough Metal Detector

Model NO.: ZA4500C

Quantity:

Product Description

NEW45 ZONESWALK THROUGH METAL DETECTOR
MODEL: ZA4500C (45 zones )
This metal detector has high detection sensitivity for magnetic metal and non-magnetic, and has good recognition ability for personal items such as coins, keys, belt buckles, etc. Multi-layer overlapping transceiver coil design, using high-intensity indicator column can be accurately shows the    horizontal position of the metal object, which is convenient for the staff to quickly identify and achieve the best detection effect.
Technical parameter:
Door External Size: 2230(H)X820(W)X600(D)mm
Door Internal Size: 1995(H) x 720(W) x600(D)mm
Packing type：Carton box
Net weight：65KG
Gross weight:70KG
Working voltage：AC90V~264V 47.5~60Hz
Power consumption：less than 15 W
Detection zones：8/16/24 /45zones
Each zone sensitivity:0-300degree
Total sensitivity : 0-4095 degree
Working frequency：up to 100 level frequency for adjusting
Relative Humidity：0 – 95 %
Working environment temperature：-20ºC~65ºC
Character and Function Description:
*The 2 metal detector can put together with distance about 20 to 30cm,strong anti-interference for big metals objects.
*7 inches colour LCD monitor with Infrared remoter controller
*8/16/24/45 zones；
*4 or 20 hours battery back up (for option )
*panelside with LED
*Program Self-diagnostic when power on
*With different language version for client use easily
*Fly object detection function
* With 30 application inside
*With LED interference signal display on the monitor
*It can detect up to 100 times per minute at the fastest, and automatically enters the power saving mode without detection
  with in 5 minutes，When the people or object passes, it automatically enters the awake mode.
*Have 20 degrees volume and 16 kinds of the tone for adjusting.
*Automatically counting the passing times and alarm times.
*100,000 large capacity record information is convenient forinquiry
* Password protection only allows authorized personnel to operate
and is more secure
*Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
*The exterior is made of waterproof and high-strength synthetic materials, equipped with fixed parts, waterproof, moisture- proof at the bottom
*Dry contact interface for the barrier and other products。
Application：
Government office, Shopping mall, hotel, school, building, police office, courts, prisons, Border, airport, station, gymnasium, exhibition center, places of entertainment, large gatherings , factories such as hardware, electronics, jewelry, war industry, coinage and other factories or companies
