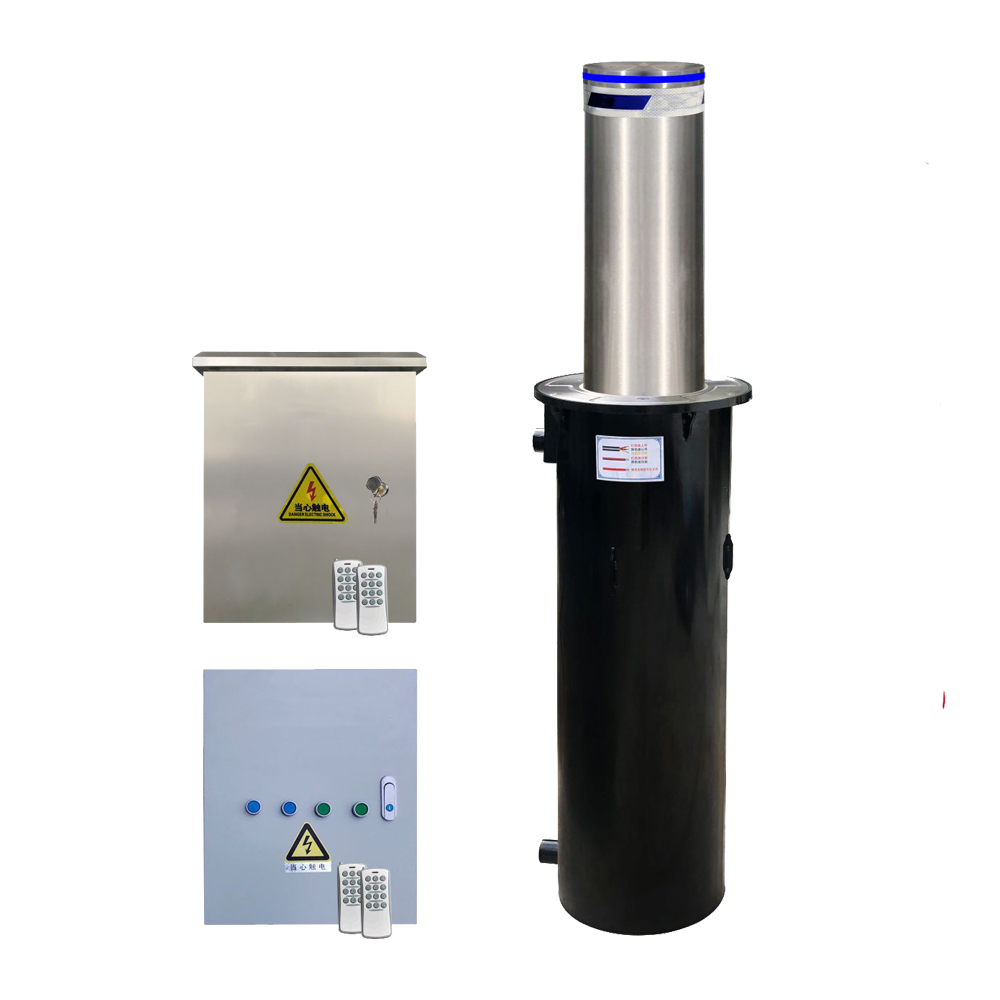

Automatic Sainless Steel Hydraulic Bollard

Automatic Sainless Steel Hydraulic Bollard

Model NO.: ZA902

Quantity:

Product Description

Hydraulic 400-1200MM Height Automatic Rising Bollard

Cylinder diameter	219mm
Cylinder height	600mm
Cylinder thickness	6mm
Lifting speed	2s-4s
Number of guide pillars	4
Waterproof	IP68
Cylinder material	304 stainless steel
Working temperature	-35~75℃
Voltage, power	220V/350W
Control method	control box/wireless remote control
Warning	Ultra-high brightness LED light strips
Flange specifications	diameter 395mm*thickness 10mm
Pre-embedded specifications:	395395depth 1109mm
Emergency function	Equipped with EPS emergency power supply and one-button descent
Extended functions for option	license plate recognition, fire alarm, access control system linkage

Automatic Bollard Features:

*The automatic bollard can be used normally after being transported by a 100-ton vehicle.

*Waterproof grade IP68

*The automatic bollard structure is solid, the outlet and drain are made of 4mm thick carbon steel, and the outer barrel is designed with 4 welding bars

*Use LED warning light strips to effectively improve nighttime warning effects

*Flange thickness optional 6MM/10MM

*Support customization

*Option :It can be controlled in conjunction with license plate recognition, barrier gates, access control, infrared, radar, ground sensing, power, etc., and fire protection systems

Support cloud platform management system to control lifting columns, combined with mobile APP control

Automatic Bollard Application Places:

Traffic light intersections, tourist attractions, villa areas, subways, pedestrian streets, government units, stadiums, checkpoints, factories, schools, parking lots, hospitals, etc.

Configuration options:

height thickness diameter

400mm 8mm 168mm

800mm 10mm 273mm

1000mm 12mm 325mm

1200mm 16mm --

1500mm 20mm --
